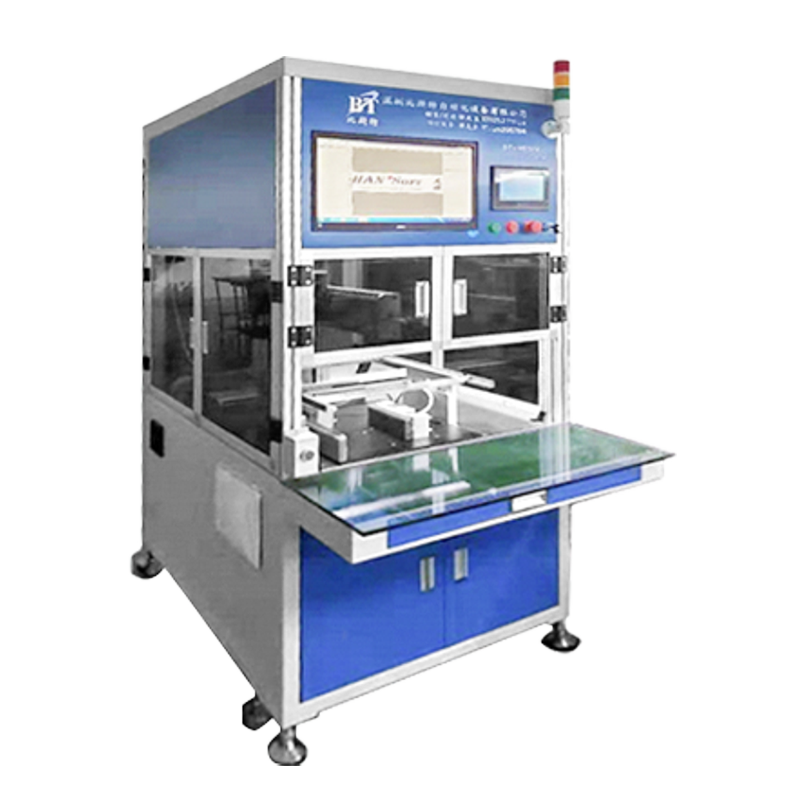

BT-J20 laser automatic welding machine
2025-11-20 15:22:40
Product features：
Automatic welding, solder joints are even, good consistency, improve thequalification rate.
Using 300W pulse laser welding and cutting machine
Machine comes with cooling device
Welding coordinate parameters are written by computer programmingThe operating mechanism adopts servo motor with linear module forprecise positioning
Automatic production quantity collection
一、Main function
Cylindrical battery pack voltage collection nickel sheet and BMS PCB nickel sheet padautomatic laser welding
二、Product characteristics
Automatic welding, solder joints are even, good consistency, improve thequalification rate.
Using 300W pulse laser welding and cutting machine
Machine comes with cooling device
Welding coordinate parameters are written by computer programmingThe operating mechanism adopts servo motor with linear module forprecise positioning
Automatic production quantity collection
三、Product parameters
Power | AC380V 50/60HZ 5KW | Maximum welding stroke | L400*W320MM | |
Air pressure | 0.4-0.8Mpa,Air source must be used when there is a filter device to ensure that the flow of water-free impurities. | |||
Suitable for welding nickel sheet thickness | 0.1MM-0.2MM | |||
Standard laser welding power | 300W pulse laser welding.quantity 1 | |||
Welding type | 1Automatic laser welding of polymer cells tabs and PCB nickel pads 2.Cylindrical battery pack voltage ollection nickel sheet and BMSPCB nickel sheet pad automatic laser welding | |||
Chiller | Dong lu yang | |||
Fiber optic cable | Standard length 5m | |||
Industrial Computer | win 7 | |||
Laser rod | YAG Transistor | Equipment dimensions | L1550*W900^H1700MM | |
Droductiyt | About0.5S/per point | Weight | 650KG | |
